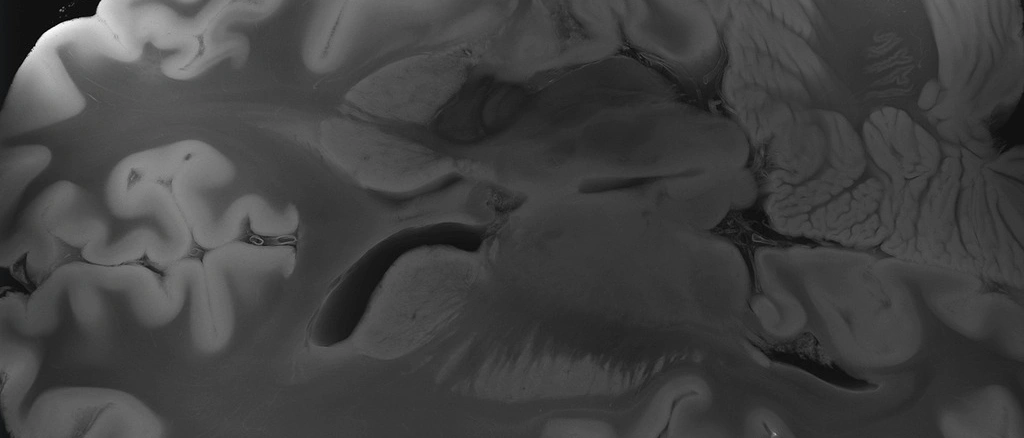

Volume Render
Visualizing volumetric data in VR and AR.
Source

How to use

Import volume

1) Start _Project/Import scene. 2) Choose a volume name. 2) Select volume source. (only .nii float volumes are supported) 3) Select volume format. For example Gray8 for grayscale and RGBA32 for color. 4) Click ‘Import’.

Use existing volume

TODO…

Render volume in VR

1) Start _Project/VR scene. 2) Select volume in volumes list. 3) Click ‘Load’. 4) Put on your VR headset. 5) Holding the right grip button, you can cut the volume. 6) Pressing the primary button on right controller, you toggle between render quality modes.

Rendering

The volume occupies a space cube with size (1, 1, 1) at position (0, 0, 0). The faces of the cube are inverted so its possible to move the camera inside the cube and render the volume.

In the fragment shader we will create a ray based on the local position and direction of the camera. Raycasting the cube we get the distance to travel inside the volume.

In order to achieve the cutting effect, the ray is clamped to the plane defined by _CutOrigin and _CutNormal

Traversing the volume in discreat steps until we cover the distance, blending the sampled color at each step.

Shader

v2f vert (appdata v)
{
    v2f o;
    o.vertex = UnityObjectToClipPos(v.vertex);
    o.vertexLocalPos = v.vertex;
    o.cameraLocalPos = mul(unity_WorldToObject, float4(_WorldSpaceCameraPos, 1.0));
    return o;
}

fixed4 frag (v2f i) : SV_Target
{
    // Create a ray in local space
    float3 rayOrigin = i.cameraLocalPos;
    float3 rayDirection = normalize(i.vertexLocalPos - rayOrigin);

    // Raycast a box and get entry and exit points
    float2 rayToContainerInfo = rayBoxDst(float3(-.5,-.5,-.5), float3(.5,.5,.5), rayOrigin, 1/rayDirection);
    float dstToBox = rayToContainerInfo.x;
    float dstInsideBox = rayToContainerInfo.y;
    float3 entryPoint = rayOrigin + rayDirection * dstToBox;
    float3 exitPoint = entryPoint + rayDirection * dstInsideBox;

    // Clamp ray to plane
    exitPoint = ClampRayToPlane(entryPoint, exitPoint, _CutOrigin, _CutNormal);
    entryPoint = ClampRayToPlane(exitPoint, entryPoint, _CutOrigin, _CutNormal);
    dstToBox = length(entryPoint - rayOrigin);
    dstInsideBox = length(exitPoint - entryPoint);

    float dstTravelled = 0.0;
    float4 color = 0;

    // Step through the volume in small steps and blend the colors
    [loop]
    while (dstTravelled < dstInsideBox) {
        float3 samplePosition = entryPoint + rayDirection * dstTravelled;

        float4 sampleColor = SampleVolume(samplePosition);

        sampleColor.a *= _Alpha;
        color = BlendUnder(color, sampleColor);

        dstTravelled += _StepDistance;
    }

    return color;
}

Params

Type Name Description
sampler3D _Volume Used only for smaller volumes, single volume texture up to 2048x2048x2048 and 2GB
sampler3D _Volume000-111 Used only for larger volumes split to 8 textures up to 4096x4096x4096 and 16GB
float _StepDistance Distance betweens steps while traversing the volume, lower number takes samples faster
float _ClipMin Voxels with alpha below this threshold are discarted
float _ClipMax Voxels with alpha above this threshold are discarted
float _Alpha Each voxel’s alpha is multiplied by this, change opacity of the resulting render
float _AlphaThreshold When resulting color’s alpha is higher than this threshold the ray is stopped and program exists saving compute time
float3 _CutNormal Normal of plane that cuts the volume
float3 _CutOrigin Origin of plane that cuts the volume

TODO presets with images

Format

Application can import .nii volumes in float format. Volumes itselfs are saved in the .vlm format.

.vlm

First 36 bytes include the header

Name Type Size
width int 4
height int 4
depth int 4
min float 4
max float 4
format enum 4
clustersWidth int 4
clustersHeight int 4
clustersDepth int 4

Formats:

  • Gray8 = 8bit per voxel grayscale
  • Gray16 = 16bit per voxel grayscale
  • RGBA32 = 32bit per voxel color and alpha
  • RGBA64 = 64bit per voxel color and alpha

The rest of the file are clusters of voxels saved in sequence

Volumes library

  • 100micron brain scan at 1263x1651x1148 at 8bit per voxel 2.23 GiB https://xrvolumerender.azureedge.net/volumes/brain.vlm

Source Datasets

  • 100micron brain scan source: https://datadryad.org/stash/dataset/doi:10.5061/dryad.119f80q
